Supercomputers can crunch massive data sets and give us insights into the wonders of the universe. But a sub-penny microprocessor that flexes to fit on a beer bottle and tells you whether your brew is still cold? Creating that technology has been surprisingly more difficult to achieve.

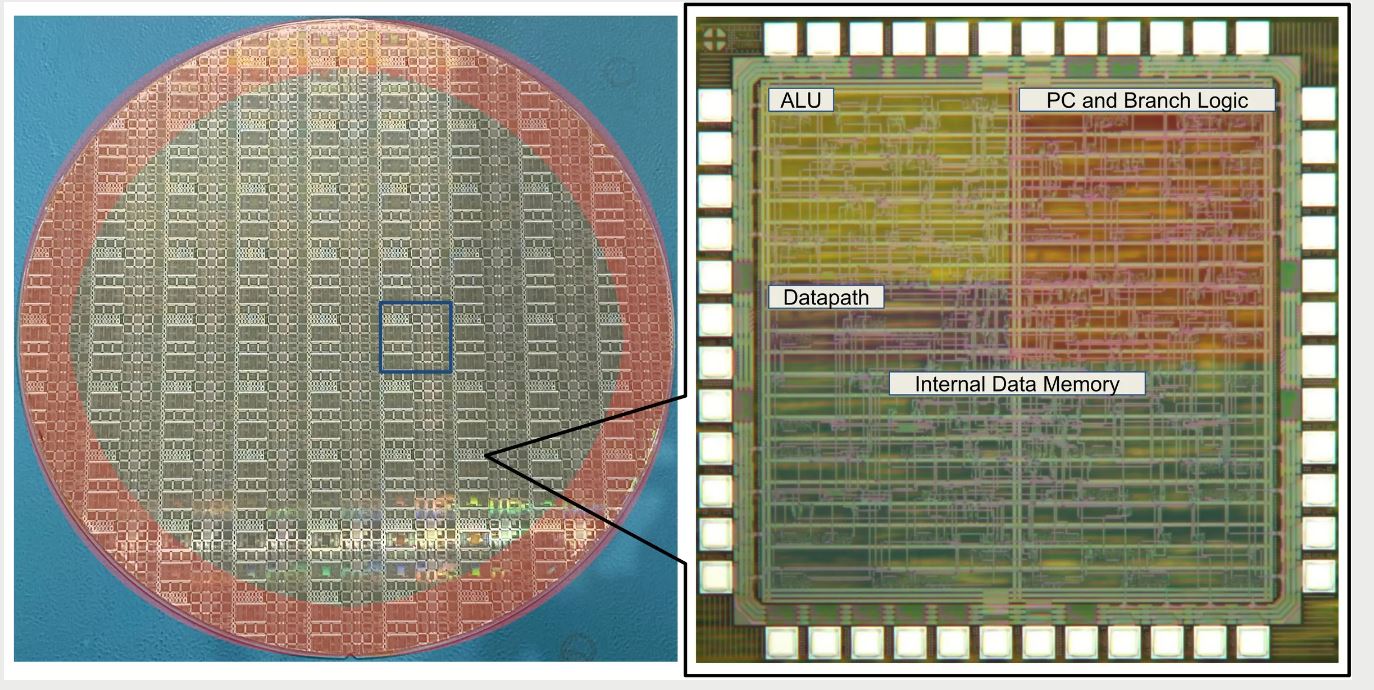

FlexiCores
FlexiCore chips

Recently, a team of researchers from the University of Illinois Urbana-Champaign said: hold my beer. Working with British flexible electronics manufacturer PragmatIC Semiconductor, the researchers developed the first commercially viable flexible plastic microprocessor chips, called FlexiCores, that can be manufactured at scale for less than a penny per unit.

The new processors could help even everyday objects become “smart.”

“For example, you could put processors on bandages to detect whether a wound is healing, or add them to consumer goods packaging to track progress along the supply chain,” said Rakesh Kumar, a professor of electrical and computer engineering and researcher in the Coordinated Science Lab at UIUC. “The challenge has been creating a processor that can be both cheaply produced and flexible enough to fit snugly even against uneven surfaces on our body, packages, or beer bottles.”

Researchers solved the problem in part by turning to plastic, instead of silicon, as the basis of the chips. Silicon is the industry standard for semiconductors, but it has inherent limitations due to its cost and its inflexibility. Kumar and his team built the FlexiCores on thin-film transistors made with the semiconductor indium gallium zinc oxide (IGZO), which works even when bent and is compatible with plastic.

The chip design was equally important in the pursuit of sub-penny plastic processors: in this case, less was more.

Nathaniel Bleier and Rakesh Kumar
Nathaniel Bleier (left) and Rakesh Kumar

“Even the simplest modern chips are overkill for what we need them to be able to do for our target applications,” Kumar said. “Our FlexiCore chips look like 1970s silicon chips because we greatly reduced the number of components on them through careful design.”

The UIUC team tested 4-bit and 8-bit processors and found that the 4-bit processors produced a yield of 81%, which is high enough for the chips to be manufactured for less than a penny each. (“Yield” refers to the percentage of chips that work.) The 4-bit processor has 2,104 devices (transistors and resistors), which is far less than the 56,000-plus devices on a plastic ARM processor that debuted last year with much fanfare, but hasn’t been shown to be manufacturable at scale and does not run multiple programs, as FlexiCore can.

In an interview with IEEE Spectrum, Scott White, CEO of PragmatIC Semiconductor, said, “This is exactly the kind of design innovation needed to support truly ubiquitous electronics.”

The low gate count in FlexiCores improves yield and reduces the “bill of materials”—the amount of material needed to produce each chip.

Kumar noted that the semiconductor industry has mostly been concerned with improving performance and power efficiency. With this research, he and his team are pioneering flexible electronics with new application frontiers. The research will be presented at the International Symposium on Computer Architecture later this month.

“These chips combine the flexibility and cost benefits of plastic technology with the high yield and low bill of materials enabled by our architecture,” he said. “It will be interesting to see where we go from here.”
