Now for use in positioning in semiconductor, metrology and robotic equipment-

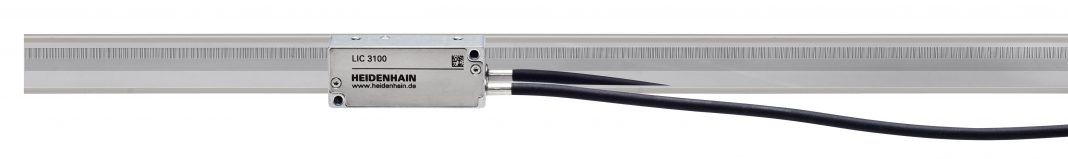

It is important to note that the graduation of the new LIC 3100 encoder is carried by a sturdy stainless-steel tape. This steel tape scale has a 2-track graduation resulting in a period of 80 microns. The tape scale is offered in rolls at 3m, 5m, and 10m lengths and can be inserted into an aluminum extrusion for better thermal growth behavior or can be mounted directly to the motion axis surface with an adhesive backing on the steel tape.
The reader head of the LIC 3100 can output a measuring step of just 10 nanometers and maintain a velocity of 10 meters per second. It is offered with the well-known EnDat 2.2 high speed serial electrical interface as well as five others, making it plug-and-play compatible with motion controllers. The interpolation error, or cyclical error, is merely +/- 100 nanometers, allowing the encoder to provide smooth constant velocity and allow linear motors to function more efficiently.
Mounting of the reader head to the scale is fast and simple due to forgiving mounting tolerances and easy-to-use handheld diagnostic tools like HEIDENHAIN’s PWT 101. A zero-datum position can be programmed anywhere along the scale length.
